Riegler Pneumatisch entsperrbares Rückschlagventil G 3/8, G 3/8 i., G 1/8

€48.49
Tax included
  • Pneumatisch entsperrbares Rückschlagventil G 3/8, G 3/8 i., G 1/8, Arbeitsdr. 0,3-10 bar, Temp. max. 60 °C, MS vern

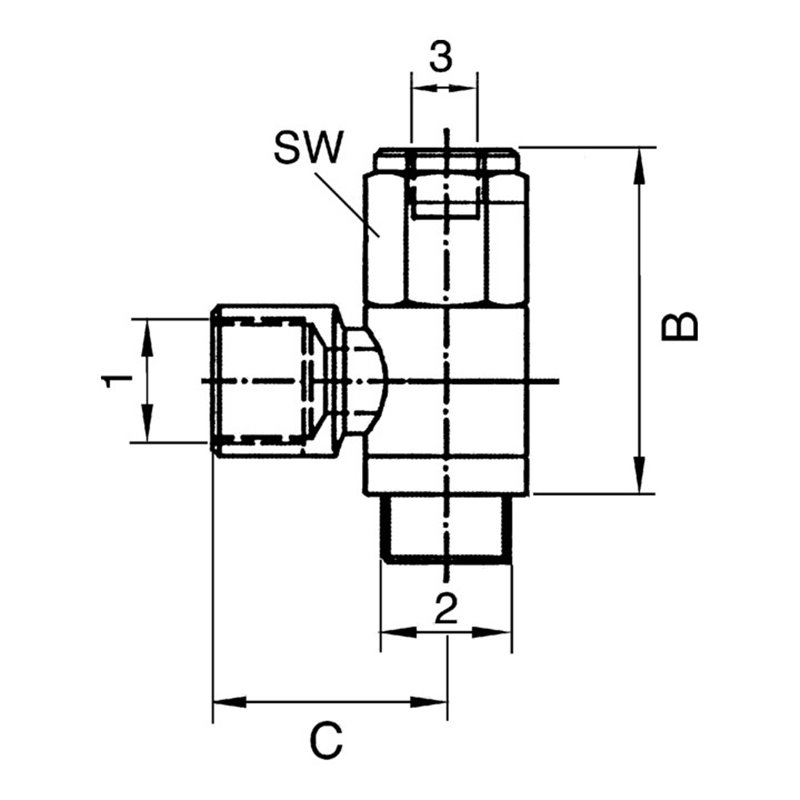

  • Zum Anhalten und Positionieren der Zylinderbewegung:Liegt ein Steuersignal am Anschluss 3 (siehe Zeichnung) an, kann die Druckluft. vom und zum Zylinder fließen
  • Liegt kein Steuersignal mehr an, so sperrt das Rückschlagventil die Zylinder-Abluft
  • Der Zylinder wird angehalten
  • Die entsperrbaren Rückschlagventile werden anstelle der normalen Schlauchanschlüsse direkt an den Zylinder geschraubt
  • Hinweis: Der Steuerdruck ist abhängig vom Betriebsdruck
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

RIEGLER
87468221
100 Items

Data sheet

Material
Messing vernickelt
B
46 mm
C
31.6 mm
Dichtmaterial
NBR
Umgebungstemperatur max.
60 °C
Betriebsdruck max.
10 bar
Betriebsdruck min.
0.3 bar
Mediumstemperatur max.
60 °C
Einbaulage
beliebig, Ringstück vor dem Festschrauben positionieren
Anschluss 1
G 3/8
Anschluss 2
G 3/8
Steuerdruck max.
2.5 bar
Steuerdruck min.
0.5 bar
Anschluss 3
G 1/8
